What Do T0, T1, and T2 Silicone Mold Samples Actually Approve?

Give T0, T1 and T2 Project-Specific Meanings for silicone mold T0 T1 T2 samples

Treat T0, T1 and T2 as controlled decision gates, not universal industry grades. Some toolmakers call the first molded output T0, others begin with T1, and the number of correction rounds varies with geometry, cavity count and risk. The purchase file must therefore define the evidence expected at each named round before the first trial is scheduled.

A sample-round label should answer four questions: which mold revision produced it, which process and material conditions were used, what the team is allowed to decide, and which issues remain open. Without those limits, a buyer may approve appearance while the factory assumes dimensional release, or reject a functional sample for a color that was never intended to be final.

From the factory floor, the safest sequence is tool function first, correction verification second and production readiness last. That sequence can use T0, T1 and T2 terminology, but the signed trial plan has authority over the shorthand. Every shipment of samples should include a disposition sheet that states approve, correct, retest or information only for each requirement.

Freeze the Drawing, Material and Trial Responsibilities

Freeze the trial baseline before steel is sampled. Identify the current CAD and drawing revisions, silicone compound or approved equivalent, hardness target, pigment status, cavity map, insert revision, texture state and intended molding route. If the trial uses temporary material, unfinished texture or provisional color, mark that limitation on both the sample label and report.

Define critical-to-function dimensions, cosmetic zones, mating interfaces, sealing features, flexible membranes, parting lines, vents, gates and trimming expectations. Rank them by consequence so the toolroom knows which evidence must be measured immediately and which observations can wait for a later round. A complete drawing is useful only when trial priorities and methods are equally clear.

Assign owners for tooling, process, measurement, function, color, packaging and commercial approval. The buyer should name who can release a correction and who can authorize production, while the factory should name who controls the trial report and tool-change record. This prevents comments from chat threads or marked photographs from becoming undocumented engineering instructions.

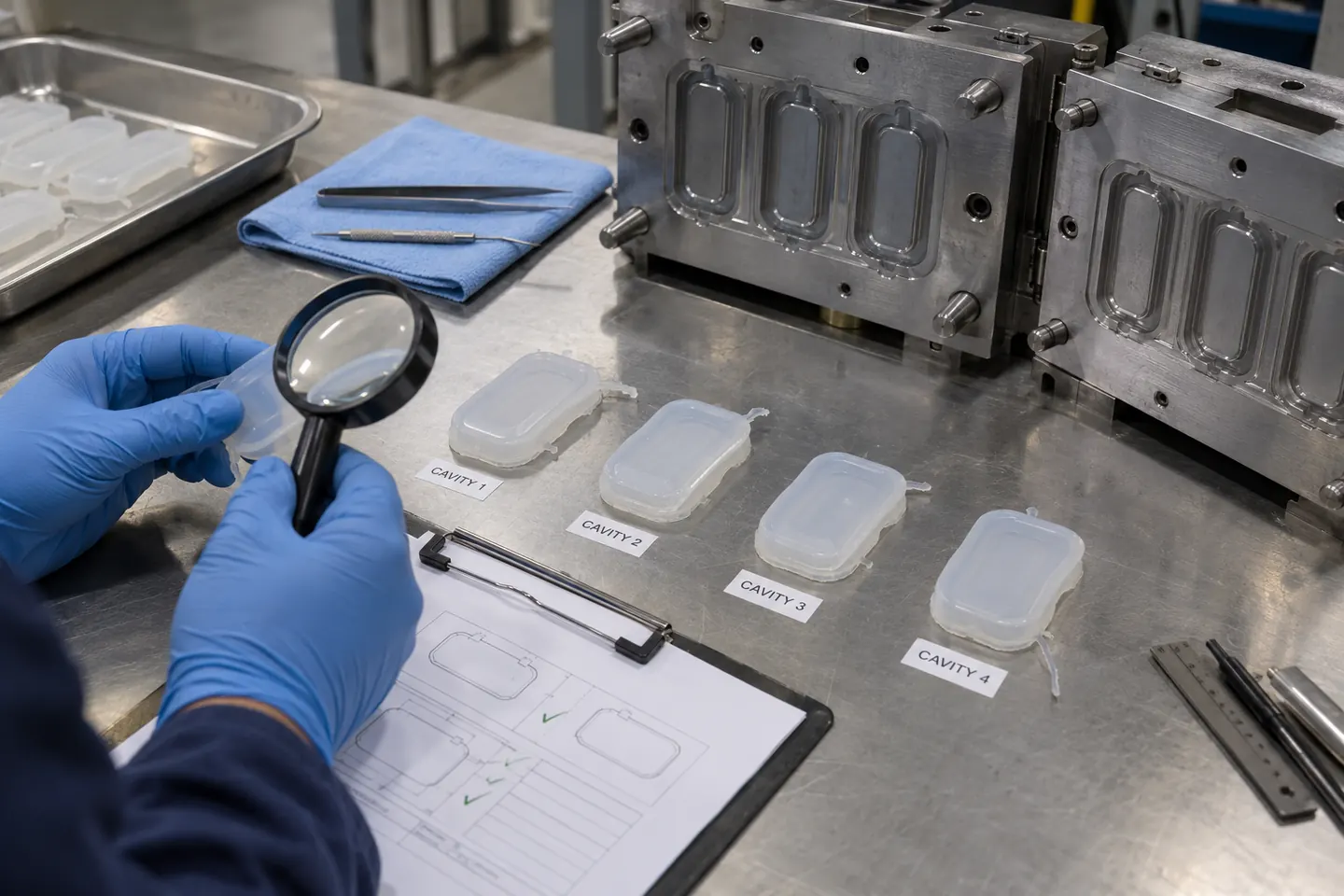

Use T0 to Prove Basic Mold Function

The first tool trial should prove that the mold can close, fill, vent, cure, open and release parts without an immediate structural failure. Review short shots, trapped air, scorch, flow hesitation, sticking, tearing, severe flash, insert movement, ejection damage and cavity imbalance. Record the actual process window rather than polishing one sample until it looks suitable for presentation.

Keep samples by cavity and shot sequence. The first few cycles can behave differently while mold temperature and material flow stabilize, so a mixed bag hides whether a defect is transient, cavity-specific or common to the design. Photograph the mold and molded evidence before trimming when gates, vents, overflow wells or flash patterns are part of the investigation.

T0 should rarely authorize mass production. It can approve tool movement, reveal major steel-safe corrections and identify whether the part can be measured and functionally handled. Cosmetic finish, final pigment, validated cycle time, stable capability, packaging and market evidence may still be incomplete, so the report must state what T0 did not prove.

Convert T0 Findings Into a Controlled Correction Log

Convert every T0 observation into a numbered correction item. Link the issue to a drawing feature or mold location, classify it as tool, process, material, trimming, measurement or requirement uncertainty, and specify the evidence needed for closure. Comments such as improve fit or make the edge cleaner are not actionable enough for controlled steel work.

Separate steel-safe changes from steel-addition changes. Increasing an opening or removing steel may be straightforward but difficult to reverse, while reducing an opening can require welding, inserts or component replacement. The toolmaker should explain correction direction, affected cavities, expected side effects and whether the buyer must approve a revised drawing before machining.

Maintain one correction log with before-and-after dimensions, photographs, responsible owner, completion date and mold revision. When several corrections interact, note the dependency instead of closing them independently. A gate modification may change fill balance, flash and part orientation, while a local thickness correction may change shrinkage or demolding behavior elsewhere.

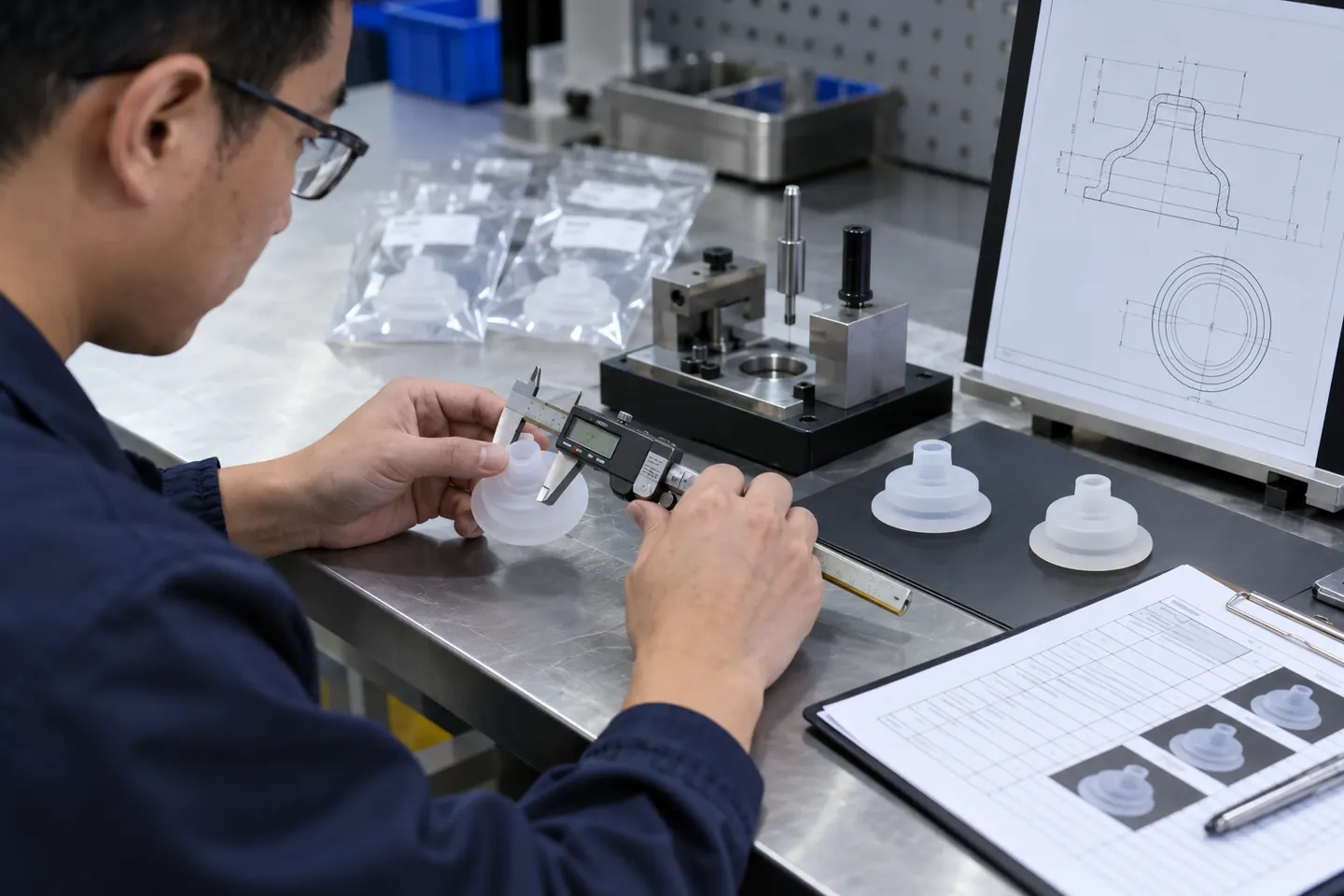

Use T1 to Verify Corrections With Comparable Measurements

T1 should verify the agreed correction list on a controlled mold revision. Use the same measurement datums, conditioning period and functional methods defined for T0 so results are comparable. If the compound, pigment or process changes materially, record the change and avoid presenting the new result as proof that a steel correction alone solved the issue.

Measure every critical characteristic and a risk-based selection of supporting dimensions across all active cavities. Flexible silicone can distort under contact pressure, so fixtures, part orientation, temperature, time after molding and instrument choice matter. ISO 23529 provides useful principles for preparing and conditioning rubber test pieces, while the finished-part method still needs project-specific definition.

Close each correction with evidence, not with a visual impression. A dimensional change needs measured results, a sealing issue needs the agreed leak or fit method, and a cosmetic change needs the approved viewing condition and boundary reference. Any new defect caused by the correction returns to the log with its own owner and disposition.

Confirm Fit, Seal and Product Function on Controlled Interfaces

Functional validation should reproduce the intended interface and use condition as far as the development stage permits. Test assembly, sealing, suction, flexing, folding, pull, release, stacking, lid fit, cleaning access or fixture contact according to the actual product risk. A generic material data sheet cannot approve the interaction between molded geometry and the buyer's mating part.

Use controlled mating components and record their revision. A fit result is unreliable when the factory uses a nominal CAD print while the buyer tests an older physical component with different tolerances. For product families, include high-risk sizes and tolerance combinations rather than approving one convenient middle size and extrapolating to every SKU.

Record failures and near-limit results even if a preferred sample passes. The goal of a trial is to understand the acceptable window, not to find one successful piece. When performance varies by cavity or molding condition, decide whether the next action is tool correction, process study, tolerance change or a more explicit product requirement.

Use T2 to Demonstrate a Production-Representative Baseline

A T2 or final preproduction round should demonstrate the intended production baseline: approved mold revision, production compound, representative pigment, texture, finishing route, active cavities and planned inspection method. Run enough consecutive cycles to reveal repeatability, not merely enough pieces for a courier box. Quantity and duration remain conditional on the part, cavity count and risk.

Review cavity-to-cavity dimensions, appearance, part weight where useful, flash and trimming, functional results, cycle stability and reject patterns. ISO 3302-1 can provide common language for molded-rubber tolerances and flash classes, but the buyer and factory must select product-specific requirements. A standard reference does not automatically make a T2 sample acceptable.

Do not confuse T2 approval with unlimited future capability. It releases the defined baseline under the documented conditions and supports a pilot or production decision. Long-run wear, operator changes, new pigment lots, packaging pressure, shipment conditions and repeat-order drift still require production controls, retained samples and change management.

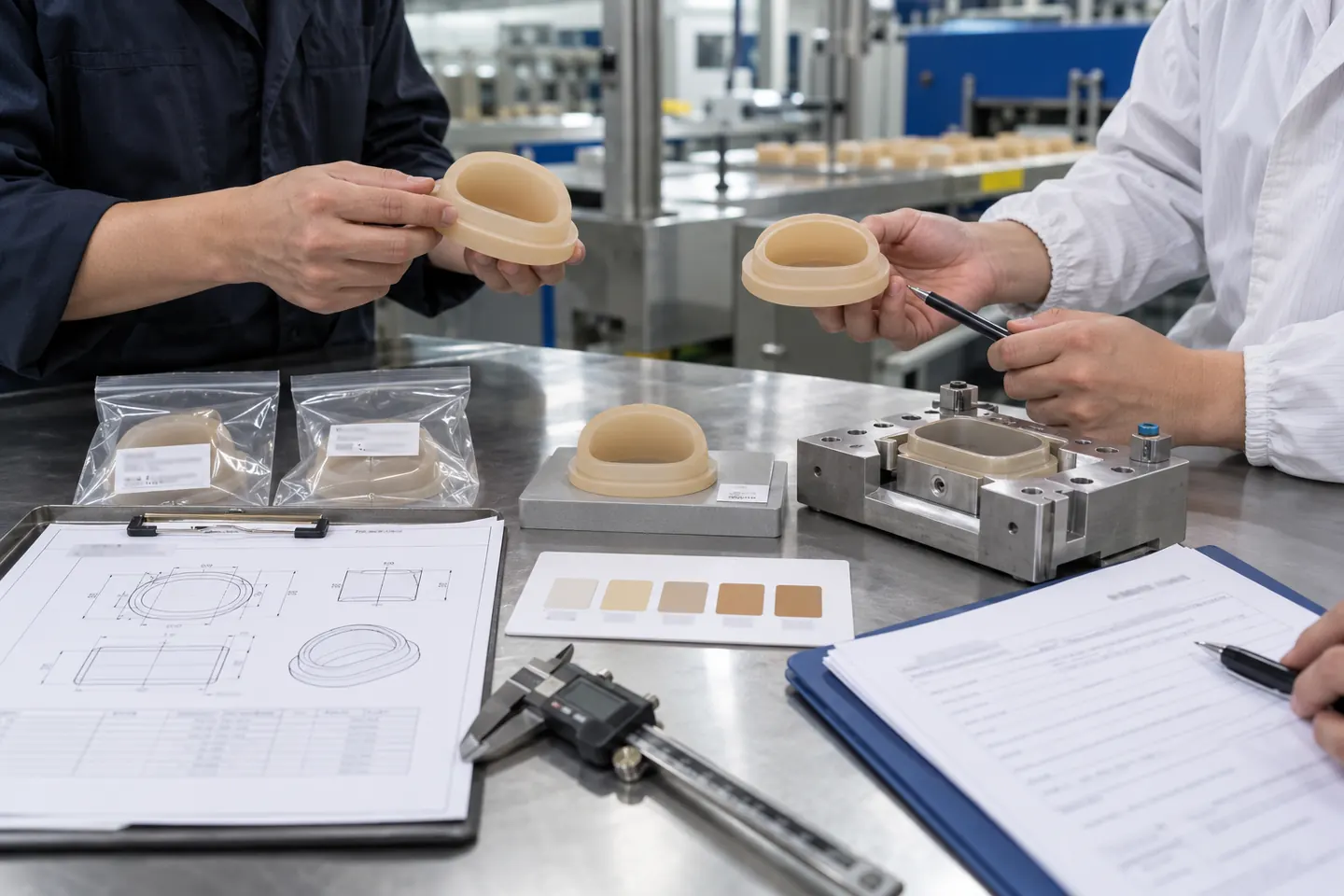

Create Golden Samples and a Clear Document Hierarchy

Create the golden sample only after requirements and evidence agree. Identify product code, drawing revision, mold and cavity, compound, color reference, process state, finishing route, approval date and approvers. Seal or protect factory, buyer and inspection references so later handling, ultraviolet exposure, dust or deformation does not silently alter the standard.

A golden sample is not a substitute for numerical requirements or a defect catalogue. It shows the accepted total product, while drawings, methods and boundary samples control dimensions and near-limit defects more precisely. If the sample and drawing conflict, the approval package must state which document governs and trigger correction of the inconsistent record.

Connect Sample Approval With Pilot and Inspection Planning

Link the sample round to an inspection plan before production release. Define first-off checks, in-process frequency, cavity coverage, defect classes, functional verification, final sampling and escalation rules. ISO 2859-1 supplies AQL-indexed attribute sampling schemes, but it does not choose defect severity or replace control of critical tooling and process characteristics.

Run a pilot when the product, process or package risk justifies it. A pilot can expose handling damage, trimming variation, mixed cavities, color changeover, pack deformation or inspection disagreement that a small tool trial misses. State the pilot lot definition and release authority so the factory does not ship saleable goods while engineering items remain open.

Require production release to show that all mandatory issues are closed, accepted deviations are authorized and remaining observations have owners. A signed sample with an unresolved critical dimension is not a complete release. Conversely, low-risk observations can remain open only when their commercial or functional consequence and next review point are documented.

Compare Tooling Quotations on the Same Trial Assumptions

Ask every supplier to quote against the same trial and correction assumptions. Specify included sample rounds, sample quantity, cavity measurement, functional tests, color rounds, steel corrections, freight, third-party work and approval response time. A low tooling price may exclude correction work or evidence that another supplier includes, so headline price alone is not comparable.

Keep timing conditional on feedback quality and correction scope. Trial lead time includes molding, conditioning, measurement, reporting, buyer review, tool work and retesting; a late consolidated response differs from several rounds of conflicting comments. Capacity and production dates should remain provisional until the release gate and material or packaging readiness are confirmed.

Requalify Relevant Evidence After Controlled Changes

Control changes after approval. Review mold steel, inserts, vents, gates, texture, compound, hardness, pigment, cure route, trimming, production site, inspection fixture and mating-component changes before implementation. Not every change requires a full T0-to-T2 repeat, but a responsible owner must document the impact and select the evidence to rerun.

Use first-production and repeat-order data to confirm that the approved baseline remains achievable. Trend dimensions, cavity findings, flash, rework, functional results and complaints against the golden sample and release report. When a trend moves toward a limit, investigate tooling or process causes before quietly widening the acceptance boundary.

Send a Complete Mold-Trial RFQ and Release Package

Prepare the RFQ with CAD, controlled drawing, intended use, mating components, critical zones, material and color direction, forecast, cavity expectation, sample-stage definitions, functional methods, defect standard, package concept and target launch. Ask the factory to identify tooling risks, proposed T0-T2 evidence, correction assumptions, pilot plan and conditional commercial terms.

At each sample round, return one consolidated disposition matrix rather than scattered messages. Mark every requirement approved, rejected, conditionally accepted or not evaluated, then reference photographs and data by sample identity. Fast feedback is valuable only when it remains traceable to the exact tool revision and physical parts.

Release production when the drawing, correction log, measurement report, functional results, color and cosmetic references, golden samples, inspection plan and authorized signatures describe the same SKU. That connected package is what T0, T1 and T2 are meant to build. The labels themselves have no value unless they lead to an evidence-based production decision.
