Custom Silicone Product Case Studies for Reliable Production

Representative sourcing cases showing how product definition, 3D design, precision tooling, sampling, manufacturing and brand-ready packaging connect.

FROM BRIEF TO PRODUCTION

Every Successful Mold Starts With Better Questions

A custom silicone project is more than a shape. Product use, material hardness, wall thickness, release direction, logo method, color, packaging and target volume all affect the final manufacturing route.

Our project team brings these decisions together early. The objective is to reduce avoidable revisions, protect the product concept and establish a specification that can be repeated across future orders.

Explore Customized Service
3DStructure &
DFM Review
15–25DTypical Custom
Mold Development
LSR + HCRMaterial &
Process Options
IQC–OQCThree-Stage
Quality Control

REPRESENTATIVE CUSTOMER CASES

Representative Routes From Buyer Need to Finished Product

Customer names, proprietary artwork and confidential measurements are not disclosed. These cases show representative ways we support private-label and customized silicone programs.

Custom silicone children's tableware set with prototypes, color references and packaging
CHILDREN'S TABLEWARE

From Feeding-Set Concept to Retail-Ready Collection

A coordinated private-label range developed around stable suction, safe proportions, consistent colors and gift-box presentation.

Customer Need

The customer had an early product direction but needed the plate, bowl, cup and spoon to feel like one collection. Suction performance, wall thickness, grip, cleaning access and packaging dimensions all had to be confirmed before tooling.

Engineering Approach

Our team reviewed the intended age group and use scenario, refined the product structure in 3D, selected suitable platinum-cured silicone hardness and prepared prototype samples. Pantone references, logo placement and packaging fit were approved together so the product and box could develop on the same schedule.

Project Outcome

The approved specification created a repeatable route from mold development to color-controlled production and coordinated packing. Future color extensions can follow the same construction and quality standard.

  • 3D structure review
  • Suction-base development
  • Color matching
  • Gift-box insert planning

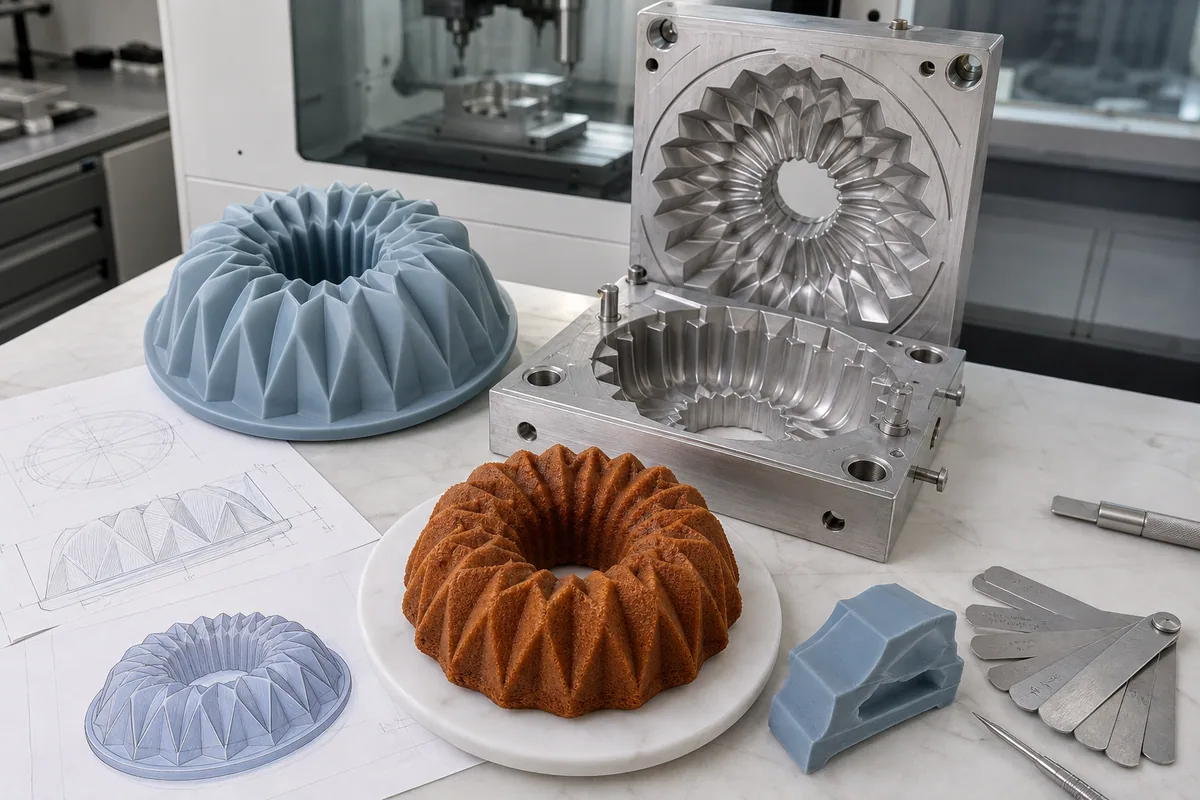

Custom silicone baking mold with matching aluminum tooling and release test cake
SILICONE BAKING MOLDS

Improving Release Performance in a Detailed Baking Mold

A complex shape re-engineered to release cleanly, fill consistently and retain its decorative detail.

Customer Need

The original geometry included narrow peaks, sharp internal transitions and uneven local thickness. Those features made demolding less predictable and increased the risk of incomplete detail and visible surface variation.

Engineering Approach

Draft angles, radii, rib depth and local wall thickness were reviewed before the production mold was finalized. Prototype samples and baking tests helped compare flexibility, handling, release performance and finished-cake definition.

Project Outcome

The revised construction provided a more stable molding process and a better user experience. The final design preserved the intended visual character while improving manufacturability, cleaning and repeated release.

  • Draft and radius review
  • Wall-thickness balancing
  • Prototype baking test
  • Tooling feasibility
Custom silicone ice tray with geometric ice shapes, drawings and precision mold
BRANDED ICE & FREEZER MOLDS

Turning a Brand Element Into a Repeatable Ice Shape

A custom cavity program balancing brand recognition, freezing behavior and easy ice release.

Customer Need

A promotional program required distinctive ice shapes with clear visual detail. The cavities needed enough depth to remain recognizable while avoiding thin sections, trapped features and shapes that would be difficult to remove.

Engineering Approach

The artwork was converted into manufacturable 3D cavity geometry. We reviewed draft, spacing, tray stiffness, fill level and release direction, then sampled the design in food-grade silicone before approving the metal mold and retail sleeve dimensions.

Project Outcome

The resulting tray produced consistent shapes with practical filling and release. The approved cavity standard can also support future promotional sets, seasonal colors and packaging variations.

  • Artwork-to-3D conversion
  • Cavity-depth study
  • Release testing
  • Retail sleeve sizing

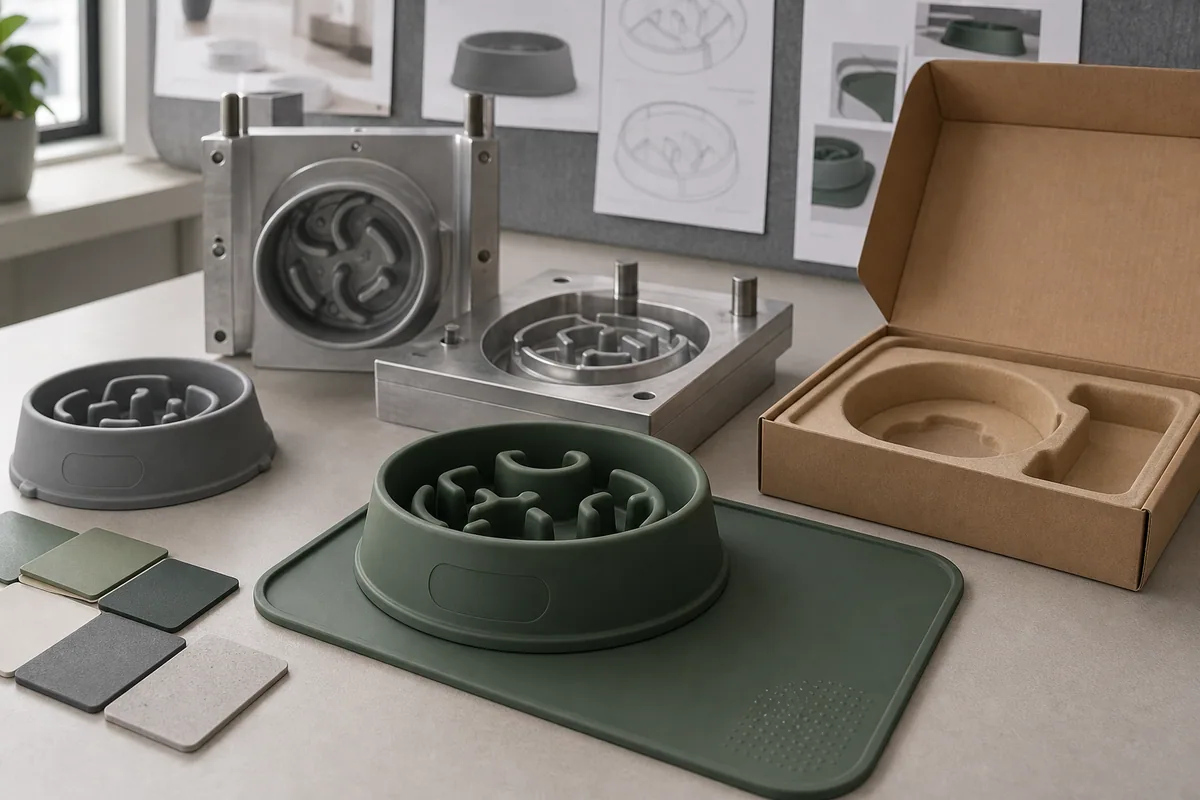

Custom silicone pet slow feeder with tooling, color chips and retail packaging
PET FEEDING PRODUCTS

Combining Slow-Feeding Function With Brand Presentation

A pet feeding product developed as one system across function, stability, logo treatment and packaging.

Customer Need

The customer wanted a distinctive slow-feeder pattern without creating corners that were difficult to clean. The bowl also required stable floor contact, an integrated mat and packaging that protected the product shape during transport.

Engineering Approach

We evaluated feeding channels, edge radii, base weight, anti-slip details and the connection between bowl and mat. Logo embossing samples, coordinated colors and a molded paper insert were reviewed alongside the product prototype.

Project Outcome

The final program connected functional feeding behavior with a consistent private-label presentation. Production, inspection and packing requirements were captured in one reusable specification.

  • Slow-feeder geometry
  • Anti-slip base design
  • Embossed logo sample
  • Protective insert development
Private-label silicone bib collection with fit prototypes, colors and packaging bands
SILICONE BIB COLLECTION

Building an Easy-Clean Bib Range for Retail

A soft-touch collection aligned across fit, pocket structure, color, branding and compact presentation.

Customer Need

The retail brief called for a comfortable adjustable neck, a pocket that stayed open during use, easy roll-up storage and a coordinated muted color range. The bib also needed to recover its shape after compact packing.

Engineering Approach

Neck settings, button spacing, edge thickness and pocket geometry were refined through sampling. Material hardness, Pantone colors, embossed decoration and paper-band dimensions were confirmed before the range entered production.

Project Outcome

The approved collection balanced daily function with a clear shelf identity. A common structure and packaging format made it easier to introduce additional colors while retaining consistent fit and performance.

  • Fit and closure sampling
  • Pocket-shape control
  • Soft-touch color range
  • Roll-up packaging

OUR CUSTOM PROJECT WORKFLOW

Clear Decisions at Every Stage

The exact route depends on product complexity and validation requirements, but every project moves through the same controlled decision points.

01

Project Definition

Application, target user, destination market, quantity, timing and commercial priorities are clarified.

02

Design & DFM Review

Drawings, samples or sketches are converted into a structure suitable for silicone molding and daily use.

03

Prototype & Tooling

Materials, critical dimensions, appearance and mold details are reviewed before production-tool approval.

04

Sample Verification

Function, color, logo, fit, packaging and agreed quality checkpoints are confirmed on approved samples.

05

Production & Delivery

Manufacturing, inspection, packing and export coordination follow the approved project specification.

PREPARE YOUR PROJECT

What Helps Us Review Your Idea Faster?

You do not need a finished CAD file. Share whatever is available, and our team can help organize the next engineering step.

01

Product Application

Explain who uses the product, what it touches, how it is cleaned and which performance requirement matters most.

02

Reference Material

Provide sketches, existing samples, photos, dimensions, CAD files or packaging references currently available.

03

Brand Requirements

Identify preferred colors, logo method, packaging style and any retail presentation standards.

04

Commercial Plan

Include estimated quantity, target launch timing, destination market and required compliance or testing support.

B2B PROJECT INQUIRY

Request a Product, Tooling and Supply Review

Share the intended product, destination market, order quantity and launch plan. Our project team will review the information and identify the next practical step.

Drawings are helpful but not required. A sketch, reference photo or physical sample can be used for an initial discussion.
